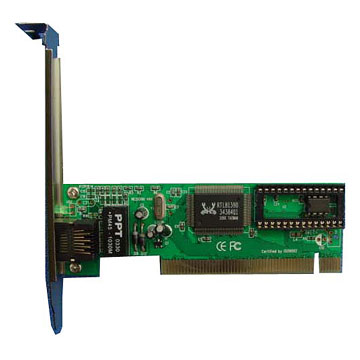

Сетевая карта Acorp RTL8139D, PCI, 10/100Mbps

Сетевая карта Acorp RTL8139D, PCI, 10/100Mbps

Артикул: 8476


Нет на складе.

Можем оповестить Вас о приходе товара.



Описание:

100-pin PQFP/LQFP
Integrated Fast Ethernet MAC, Physical chip and transceiver in one chip
10 Mb/s and 100 Mb/s operation
Supports 10 Mb/s and 100 Mb/s N-way Auto-negotiation operation
Supports PCI multi-function capabilities
PCI local bus single-chip Fast Ethernet controller
Compliant to PCI Revision 2.2
Supports PCI clock 16.75MHz-40MHz
Supports PCI target fast back-to-back transaction
Provides PCI bus master data transfers and PCI memory space or I/O space mapped data transfers of RTL8139D(L)"s operational registers
Supports PCI VPD (Vital Product Data)
Supports ACPI, PCI power management
Supports PCI multi-function to incorporate with other PCI master device
Supports 25MHz crystal or 25MHz OSC as the internal clock source. The frequency deviation of either crystal or OSC must be within 50 PPM.
Compliant to PC99 and PC2001 standards
Supports Wake-On-LAN function and remote wake-up (Magic Packet*, LinkChg and Microsoft® wake-up frame)
Supports 4 Wake-On-LAN (WOL) signals (active high, active low, positive pulse, and negative pulse)
Supports auxiliary power-on internal reset, to be ready for remote wake-up when main power remains off
Supports auxiliary power auto-detect, and sets the related capability of power management registers in PCI configuration space
Includes a programmable, PCI burst size and early Tx/Rx threshold
Supports a 32-bit general-purpose timer with the external PCI clock as clock source, to generate timer-interrupt
Contains two large (2Kbyte) independent receive and transmit FIFO"s
Advanced power saving mode when LAN function or wakeup function is not used
Uses 93C46 (64*16-bit EEPROM) to store resource configuration, ID parameter, and VPD data
Supports LED pins for various network activity indications
Supports loopback capability
Half/Full duplex capability
Supports Full Duplex Flow Control (IEEE 802.3x)
3.3V power supply with 5V I/O tolerance
Provides up to 128K-byte Boot ROM and PCI share interface for both EPROM and Flash Memory
0.25u CMOS process
Вес брутто(измерено в Coolera): 70 Грамм.
Рекомендовать друзьям и знакомым

Производитель: Acorp Electronics Corp
